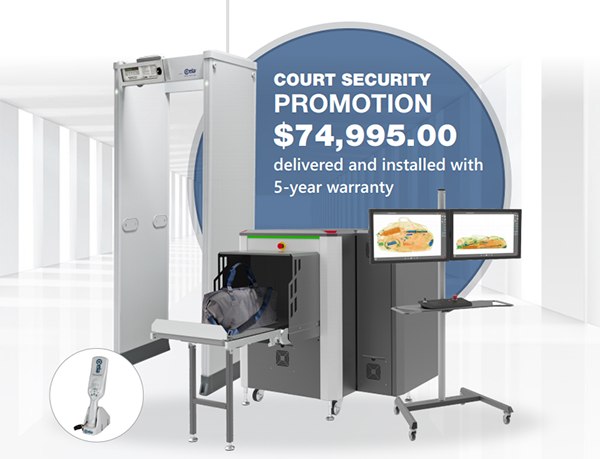

ADANI: Complete checkpoint security package
- New AI powered Automatic Weapons Detection software
- Smallest footprint Multiview X-ray imaging system
- Include 19.7" entry and 39.4" exit roller tables
- 2 independent views improve operator detection results
- Annual preventive maintenance includes radiation safety inspections as required by State regulations
- Highly accurate and reliable walk-though metal detector with zone alarms
- Includes PD240 rechargeable handheld detector for secondary search
BV 6045DV X-RAY BAGGAGE INSPECTION SYSTEMS
KEY FEATURES
- Dual-view technology
- Simple interface
- Automatic identification of suspicious objects
- Multilanguage interface
- Quick start-up and shutdown
.jpg)
- The fault-tolerant configuration of the system
OPTIONS
- Entry / Exit rollers of various length
- Stand for monitors and specialized keyboard
- Set of test objects
- Touchscreen operation
- Two monitors functionality
- Uninterruptible power supply
SPECIFICATIONS
- Power supply: 230 VAC ± 10% / 120 VAC ± 5%, 50/60 Hz
- Operating temperature: 32°F to 104°F
- Relative humidity: 0 to 95%
- Dimensions: 92.5"x 47.2"x 53.2"
- Tunnel dimensions: 24.4" x 17.7"
- Conveyor speed: 43.3 ft./min
- Wire detectability: 40 AWG
- Dual-energy detector: Yes
- Weight: 1764 lbs
CEIA HI-PE Plus ENHANCED WALK-THROUGH MULTI-ZONE METAL DETECTOR
KEY FEATURES
- Wide range of threat detection from guns to 1/2 cutter blade
- Excellent discrimination of personal metal effects
- 60 localization zones (20 vertical x 3 lateral) with left, center and right indication
- Met-Identity technology identifies and signals the metal type in real time
- High precision bidirectional counter with automatic rescreening compensation
- Random alarm capability programmable from 0% to 100%
- Exceptional Immunity to external interferences
- Standard Interfaces: Bluetooth, Infrared. Other available interfaces: Ethernet, USB
OPERATIONAL FEATURES
- High discrimination and transit flow rates
- Quick reset time as short as 0.2 seconds for high throughput rate
- Very high detection speed (up to 50 ft/sec.)
- Built-in operational functional verification
- One-touch key reading of inbound, outbound and Security Level Data
SPECIFICATIONS
- Power supply: 100…277V~ ±10%, 47…63Hz, 40 VA typical consumption
- Operating / storage temperature: -4°F to 149°F / -34°F to 158°F
- Relative humidity: 0 to 95%
- Dimensions: 88.8" x 38.5" x 26"
- Weight: 176.4 lbs
CEIA PD240 HAND-HELD METAL DETECTOR
ADVANTAGES & BENEFITS
- Programmable Sensitivity
- Extended Continuous Operation Time
- Automatic Low Power Mode during Screening Pauses
- Embedded Long Life Rechargeable Batteries are renewable energy and wipe out Operation Cost of Alkaline Batteries
- Embedded Fast and Reliable Battery Charger: no need of batteries removal
- Dedicated Holder acts as Minimum Space Table Stand and Mains connection for Battery Charge
- Operator Functions can be standard or customized by the user through PC GUI and USB connection
SPECIFICATIONS
- Power supply: 2x AA size NiMH, rechargeable batteries
- Fully customizable: Optical, acoustic and vibration alarm modes
- Control panel: 3-level sensitivity selection buttons
- Detection and operational functions: Customizable via HHMD Configuration tool
- Operating / storage temperature: -40°F to 150°F / -40°F to 176°F
- Relative humidity: 0 to 98% (without condensation)
- Dimensions: PD140N: 14.2" x 3.2" x 1.6"
- Weight: PD140N (with battery): 0.86 lbs
.png?w=200&h=200&mode=max&format=jpg&quality=80&ss=off&crop=0%2C0%2C2057%2C343)
